 Hurricane Shutters and Storm Panels                                                                                            Return to Shutters Page or Products page
Our removable Storm Panels provide the most cost-effective protection against the violent ravages of Hurricanes and Tropical Storms. Their rock-solid durability and easy set-up makes our Hurricane Storm Panels an absolute necessity anywhere hurricanes threaten the safety of your family's lives and property.
  • Home without Aluminum Hurricane Panels InstalledBefore Installation of Hurricane Panels
  • Home with Aluminum Hurricane Panels InstalledAfter Installation of Hurricane Panels
  • Hurricane PanelsPanels can be Aluminum or Galvanized and come in White or Silver (un-painted)
  • Aluminum or Galvanized Hurricane PanelsTo Cover windows and doors
  • Aluminum or Galvanized Hurricane PanelsTo cover any opening in the Home or Building
  • Aluminum or Galvanized Hurricane PanelsCan be mounted Horizontally or Vertically with different types of Fastening systems
  • White Aluminum Hurricane panelsCan blend in with the Home or buildings colors
  • White Aluminum Hurricane panels
  • White Aluminum Hurricane panels
  • White Aluminum & Clear Lexan Hurricane panelsYou can Mix the Clear Lexan and White Aluminum panels to let light into the home and for the ability to look out during the storm
  • Tracking & Fastening SystemsThere are many variations of Fastening the Hurricane Panels to the Structure
  • Header Tracks above the OpeningThese Header tracks allow you to Slide the top of the Hurricane Panels into the track so you only need to bolt down the bottom of the Panels
  • F Track or Studless Track These type of Fastening systems do not take up to much space on your structure and can be painted
  • Aluminum Horizontal mounting of Hurricane Panel Shutters
  • H-Header 0 Build Out TrackThis Track mounts above the opening (for Vertical installations) and mounts flush to the structure
  •

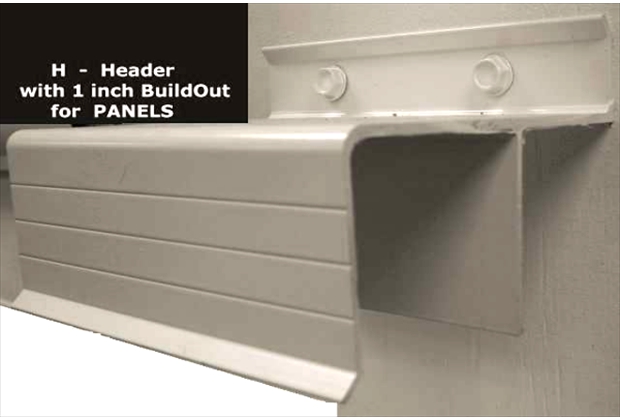

H-Header 1 inch Build Out TrackThis Track mounts above the opening (for Vertical installations) and mounts flush to the structure but is Built out 1" inch away from the structure
  • H-Header 2 inch Build OutThis Track mounts above the opening (for Vertical installations) and mounts flush to the structure but is Built out 2" inches away from the structure
  • Hurricane Panels Installed with Header TrackFront entry way Installed with Panels and Using Header Track on Top & F-Track on bottom
  • F-Track with build outF-Tracks with build out are used for mounting to keep flush with ledges and protrusions
  • F-Track comes in different angles and shapesF-Tracks are also called studless tracks used for aesthetics, to hide the studs, you need to insert the studs into the tracks before mounting
  • Studless F-Track before studs are inserted
  • Studless F-Track after studs are inserted
  • Studless F-Track after studs are inserted and Hurricane Panels are secured with Wingnuts
  • F-Track 1 inch Build Out to keep Hurricane Panels flush with the Window ledge protusionF-Tracks with build out are used for mounting to keep flush with ledges and protrusions
  • F-Track comes in Build Outs different angles and shapesF-Track Build Outs allow for many types of Fastening installations
  • Fastening and Track SystemsWe carry every type
  • Never Mount To Sills this does not comply with Building codes
 Hurricane Shutters and Storm Panels                                                                                         Return to Shutters Page or Products page
Our Hurricane panels are designed to slip into an upper header track and fasten to a lower track with washer-based wing nuts or they can be attached directly to the wall without tracks by concrete anchor and stainless steel screws.  Our panels have a compact design that allows for easy storage in your garage or shed. Our .050" and .063" aluminum storm panels have been engineered to meet the most stringent wind codes in the country and have been reviewed and accepted by the Miami-Dade County product control division, Florida Building Code, and the International Building Codes.
